Short Description:

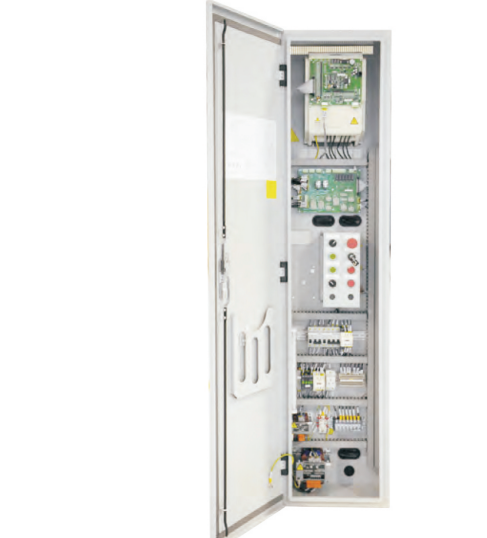

NICE-CB1 Machine Room Type Control Cabinet 2.2-15kW

• Power rate: 2.2-15kW
• Maximum Speed: <=2.5m/s
• Elevator type: Machine room
• Supporting landings: <=40(can be extended)
• Cable wiring connection: Socket connector
• Dimension(W*D*H in mm): 530*240*1024
• Controller: NICE3000+integrated controller
• Control type: Seerial communication
• Standard Brake power supply: Lift off:DC 110V with maximum 6A lasting 3s/Hold on:DC80V or DC60V(by default) with 3A or DC110V with 2A
• Input power: 3*380V or others
• Packaging case: Wooden case
• Mounting way: Gound level of machine room/wall mounting
• Optional function: UPS/ARD function, advance open door/UCMP, grouping functions, etc.
